Relief Press VPLER

Relief Press VPLER

£11,500.00 (inc. vat £13,800.00)

The price displayed may be subject to change. At checkout please choose ‘Confirm by Email’ and we will organise a quote for you. Price does not include blankets or delivery costs.

Technical data:

Dimensions of the top plate 80 x 100 cm 31.5″ x 39″
Dimensions of the bottom plate 85 x 105 cm 33″ x 41″
Maximum printing force between the plates 25000 kg 55000 lbs
Maximum opening between the plates 14 cm 5.5″
Total length 232 cm 91″
Total width 120 cm 47″
Total height 193 cm 76″
Voltage (option 110 Volt AC)

230 Volt AC (single phase)
Working height 85 cm 33″
Weight 1100 kg 2800 lbs
Dimensions of press with standard packing on pallet. WxLxH 125 x 240 x 210 cm 49″ x 94″ x 83″
Weight of press with standard packing 1200 kg 2640 lbs
Crate dimensions WxLxH 125 x 240 x 210 cm 49″ x 94″ x 83″
Weight of press in crate 1250 kg 2750 lbs

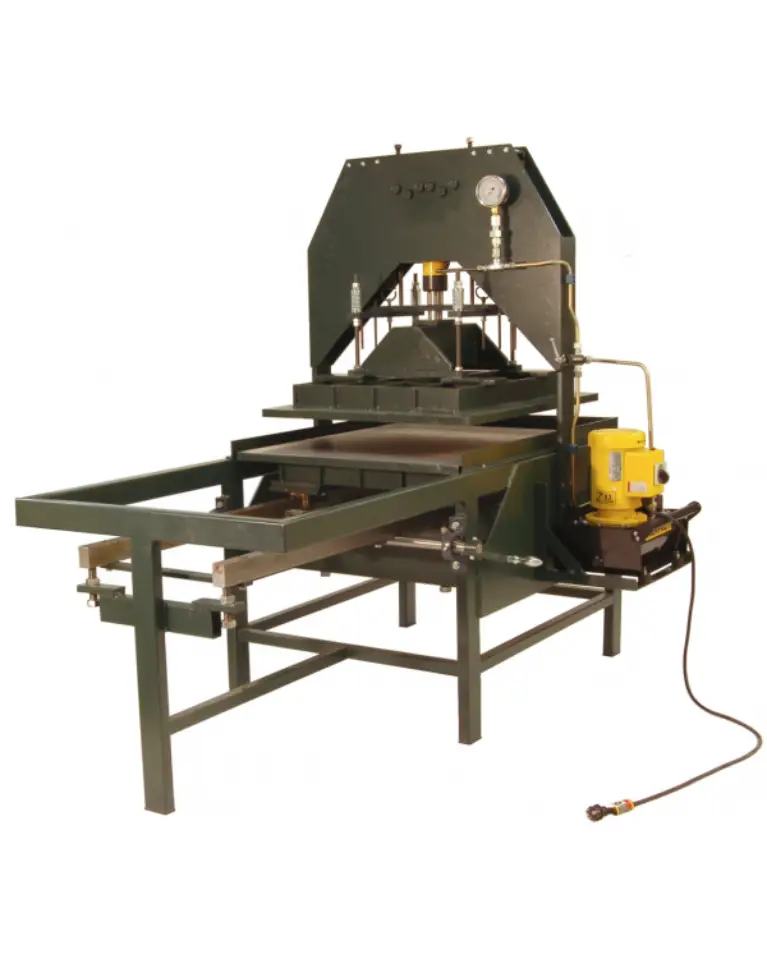

This is a highly professional hydraulic relief press for printing lino and woodcuts, with an electric pump and moveable under-plates.

The upper-plate is moved vertically by a hydraulic cylinder. These presses resemble the old hand presses (Columbian, Albion, Washington, etc.) and technically there are many similarities. The major difference however is the system to apply force to the top plate – this modern plate press is equipped with a hydraulic system which makes it possible to exercise forces that were never possible by hand.

More detailed product description and press instructions are available on request.

Available on back-order
