Relief Press VPLMV
£6,525.00 (inc. vat £7,830.00)
The price may vary from the price shown due to the increasing cost of raw materials. At checkout please choose Confirm by Email and we will organise a quote for you. This press does not include blankets and their will be a delivery price on top.
Technical data:
Dimensions of the top platen | 80 x 100 cm | 31.5″ x 39″ | |
Dimensions of the bottom platen | 85 x 105 cm | 33″ x 41″ | |
Maximum printing force between the platens | 25000 kg | 55000 lbs | |
Maximum opening between the platens | 14 cm | 5.5″ | |
Total length | 215 cm | 85″ | |
Total width | 115 cm | 45″ | |
Total height | 193 cm | 76″ | |
Required force on pump lever at maxiumum printing force (25 tonnes) | 40 kg | 88 lbs | |
Working height | 85 cm | 33″ | |
Weight | 990 kg | 2180 lbs |
Pallet size of press in standard packing op pallet. WxLxH | 120 x 220 x 210 cm | 47″ x 87″ x 83″ | ||
Weight of press in standard packing | 1040 kg | 2290 lbs | ||
Crate dimensions (optional) WxLxH | 120 x 220 x 210 cm | 47″ x 87″ x 83″ | ||
Weight of crate | 1090 kg | 2400 lbs |

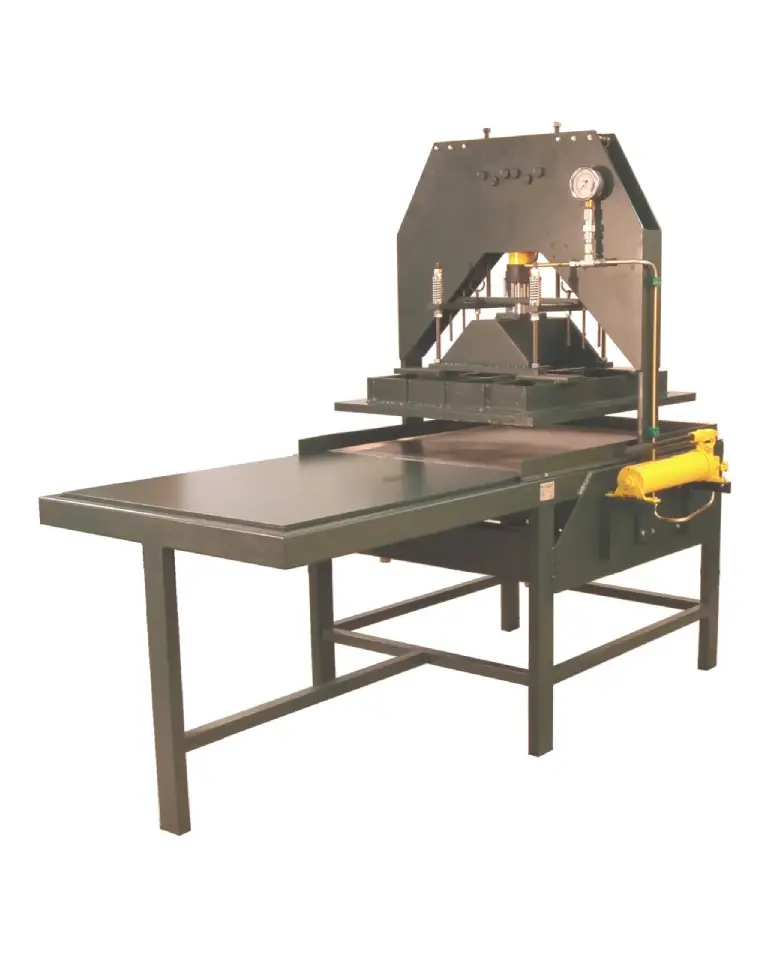

This is a highly professional hydraulic relief press for printing lino and woodcuts, with a hydraulic hand pump and fixed lower platen.
The upper-platen is moved vertically by a hydraulic cylinder. These presses do resemble to the old hand presses (Columbian, Albion, Washington, etc.). In fact technically there are many similarities. The major difference however is the system to apply force to the top platen – this modern platen press is equipped with a hydraulic system which makes it possible to exercise forces that were never possible with hand presses.
More detailed product description and press instructions are available on request.
Available on back-order
