Relief Press VPLEV

Relief Press VPLEV

£13,357.59 (inc. vat £16,029.11)

The price displayed may be subject to change. At checkout please choose ‘Confirm by Email’ and we will organise a quote for you. Price does not include blankets or delivery costs.

Technical data:

Dimensions of the top platen 80 x 100 cm 31.5″ x 39″
Dimensions of the bottom platen 85 x 105 cm 33″ x 41″
Maximum printing force between the platens 25000 kg 55000 lbs
Maximum opening between the platens 14 cm 5.5″
Total length 215 cm 85″
Total width 115 cm 45″
Total height 193 cm 76″
Voltage (optional 110 Volt AC)

230 Volt AC
Working height 85 cm 33″
Weight 1000 kg 2200 lbs
Dimensions of press with standard packing on pallet. WxLxH 125 x 220 x 210 cm 49″ x 87″ x 83″
Weight of press with standard packing 1050 kg 2310 lbs
Crate dimensions WxLxH 125 x 220 x 210 cm 49″ x 87″ x 83″
Weight of press in crate 1100 kg 2420 lbs

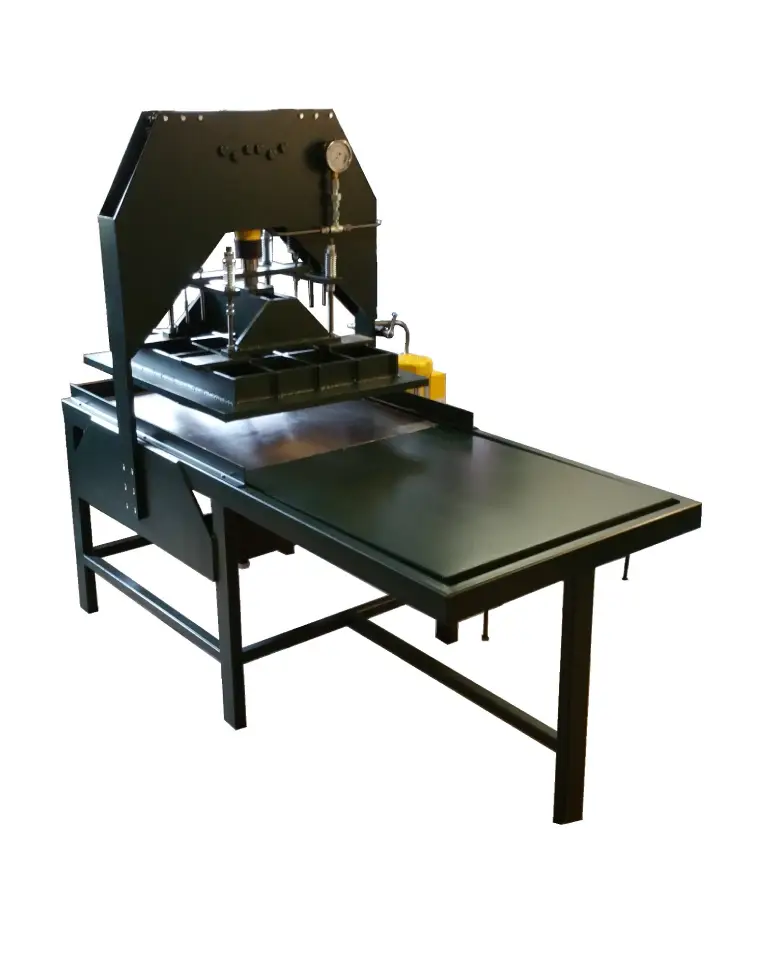

This is a highly professional hydraulic relief press for printing lino and woodcuts, with an electric hydraulic pump and fixed lower platen.

The upper-platen is moved vertically by a hydraulic cylinder. These presses do resemble to the old hand presses (Columbian, Albion, Washington, etc.). In fact technically there are many similarities. The major difference however is the system to apply force to the top platen – this modern platen press is equipped with a hydraulic system which makes it possible to exercise forces that were never possible with hand presses.

More detailed product description and press instructions are available on request.

Available on back-order

SKU: VPLEV Categories: , ,

Additional information

Weight 40000 g
Dimensions 4000 × 4000 × 40000 mm
